Products | Sidewall belts icon

Sidewall belts are suitable for horizontal to vertical transport (up to 90°) of bulk material. This can reduce the number of transfer points during operation and has a positive outcome in terms of producing in an energy and capital saving mode of operation. Ambelt® offers its customers a large portfolio of possible combinations of cleats and sidewalls in different height up to 500 mm.

Sidewalls and cleats may be manufactured with re-inforced textile layers and connected with screws if required. Furthermore, Ambelt® offers sidewall conveyor belts in cross rigid XE design as well as with steel breaker. For light to medium weight applications we recommend textile traverse reinforcement for the conveyor belts. For particularly high loads, conveyor belts with steel cable traverse reinforcement are the right choice.

Because sidewall belts are always custom-made products, please contact the Ambelt® service team for receiving an individual offer that meets your requirements.

Application areas:

  • Mining
  • Iron and steel industry
  • Foundries
  • Port and handling
  • Coal and biomass power plants
  • Recycling industry
  • Sand and gravel industry
  • Stone quarries

Belt model

Ambelt® supplies sidewall belts in the following rubber qualities:

  • highly abrasion-resistant
  • oil and fat resistant
  • heat resistant
  • flame retardant

Overview:

  • hot vulcanisation of cleats and sidewalls on the base belt
  • maximum cleat and sidewall height 500 mm
  • maximum width of belt 4500 mm
  • delivered as endless belt or open length

Technical data conveyor belts

Technical data cleats

Technical data sidewall

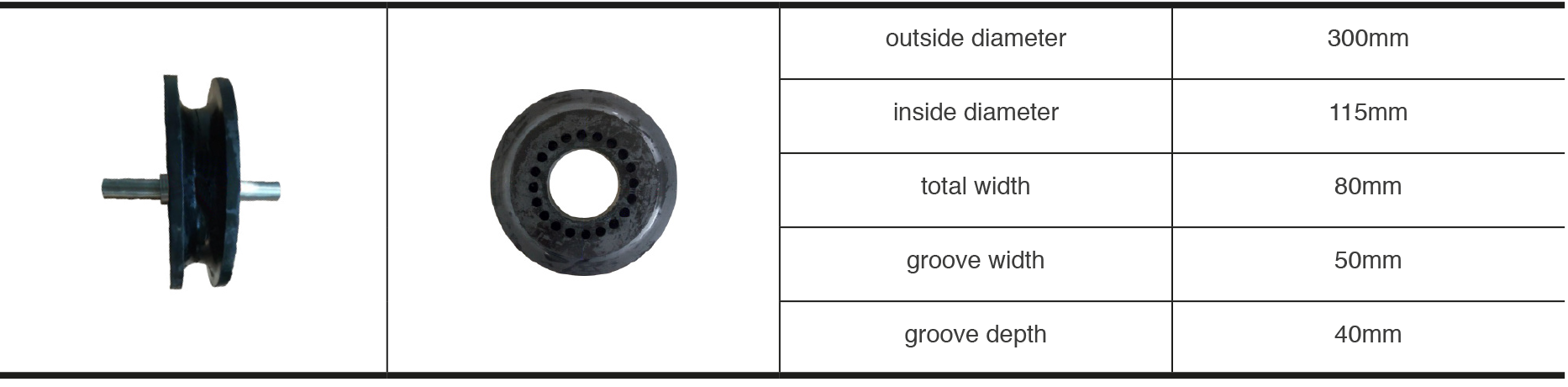

Belt steering wheels

For optimal belt alignment we recommend to use the Ambelt® belt steering wheels. The edge-free zone of the belt is located on or within the groove. This allows a reliable and gentle belt guidance.

Technical data

For inquiries, please directly refer to the Ambelt® Serviceteam.
